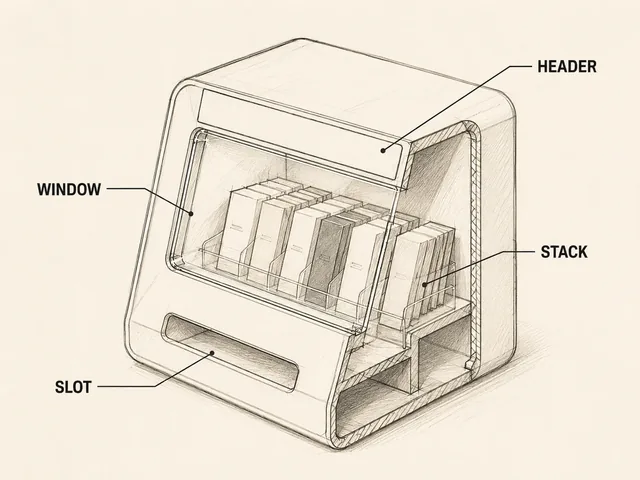

Display architecture map for brand header, front window, product stack and dispensing slot.
Case study
Retail Countertop Dispenser Display Design
A brand team needed a countertop dispenser display that could hold and dispense product samples at retail while staying on-brand and easy for store staff to restock.
Client-safeSensitive client and product details are removed.
Retail display and dispenser designThe case is organized around the project problem, not only the product category.
Packaging-Adjacent Product SystemsSee more Packaging-Adjacent Product Systems project context on the matching product type page.
Project materialsBrief, design, prototype and production details are reviewed together.
Client-safe examplesClient names and confidential details are removed. Each page focuses on the project challenge, work completed and what a similar team can prepare before contacting us. Any figures shown are representative ranges for this project type, not audited results from one named client.
This case sits in the Packaging-Adjacent Product Systems product type. Visit that page to confirm category fit before requesting a review.
Project fit
Why this case may be relevant to your product
Each theme maps to a common product-development decision: whether to fund engineering files, prototype, tooling, supplier sampling or pilot approval.
Project concern
Brand teams need a countertop display that stays upright, on-brand and easy for store staff to restock.
Best-fit need
retail display design, countertop dispenser design, branded hardware CMF direction.
What we helped reduce
Blocked logo visibility, slow restocking, tipping on a crowded shelf and jammed sample stacks.
Review angle
Review a retail display or dispenser before prototype or tooling.
Case story
Challenge, approach and result
Use this section to understand what changed through the project before comparing visuals.
| Project stage | What happened | Why it matters |
|---|---|---|
| Challenge | The team had a product and packaging format locked, but no dispenser housing direction that balanced shelf presence, restock access and brand visibility. | Clarifies why the team could not simply approve the next spend. |
| Main concern | A display built only around the product footprint could block logo visibility, make restocking slow for store staff or fail to stay upright on a crowded shelf. | Shows the commercial or technical issue behind the project. |
| Approach | Align dispenser geometry, restock access, logo placement and shelf footprint before committing to tooling. | Explains how form, structure, prototype route and supplier questions were connected. |
| Work completed | Display architecture map for brand header, front window, product stack and dispensing slot. Exploded view separating the top cover, front window and refillable product tray. | Makes the case more useful than a finished image alone. |
| Result | Clarified a restockable, shelf-stable display direction before committing to tooling. Reduced the risk of blocked logo visibility or slow staff restocking. | Helps similar teams judge whether the same path fits their product stage. |
Work shown
Project materials behind the result
A useful example should show more than a finished image: inputs, structure, prototype notes and production preparation all matter.
Work shown
Deliverable 02

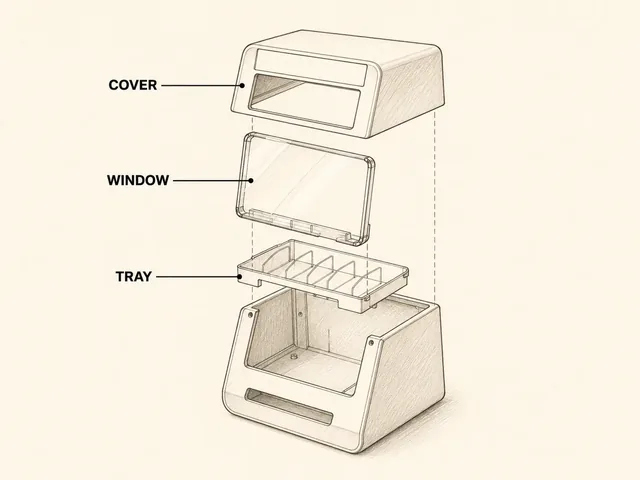

Exploded view separating the top cover, front window and refillable product tray.
Work shown
Deliverable 03

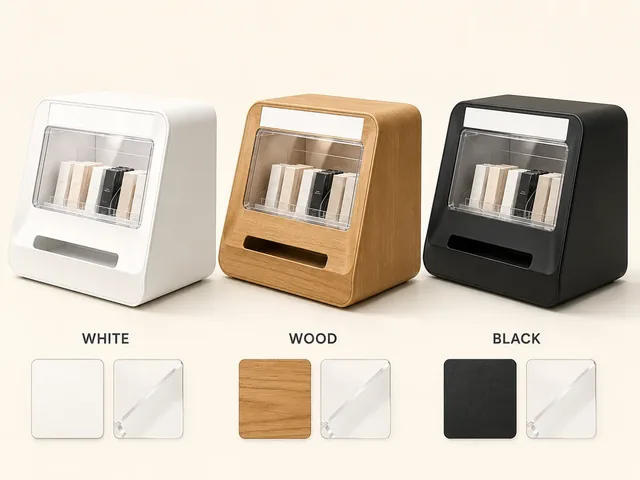

CMF direction across white, wood-grain and black counter finishes.
Work shown
Deliverable 04

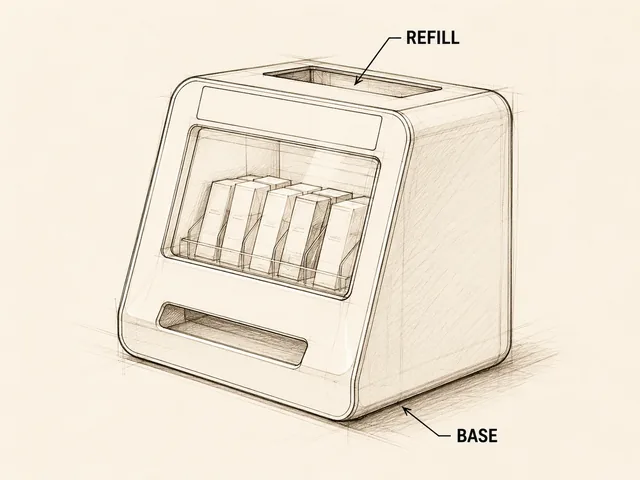

Prototype notes for restock speed and shelf-stability validation.
Project snapshot
What had to be solved
A useful case explains the project situation, not only the final visual.
Starting point
The team had a product and packaging format locked, but no dispenser housing direction that balanced shelf presence, restock access and brand visibility.
Main risk
A display built only around the product footprint could block logo visibility, make restocking slow for store staff or fail to stay upright on a crowded shelf.
Design response
Align dispenser geometry, restock access, logo placement and shelf footprint before committing to tooling.
Work map
How the work connects to the next step
Case pages separate inputs, completed work and approval gate so your team can judge whether a similar engagement fits your stage.
Inputs received
Product goal, current files, target user, constraints, references and supplier or prototype context when available.
Work completed
Form, structure, 3D files, prototype, DFM or supplier-review outputs tied to the decision being made.
Next step
A practical next decision: fund engineering files, build prototype, revise before tooling, ask supplier questions or approve pilot conditions.
Deliverables
What your team should be able to review
A strong industrial design case includes visual and technical outputs across form, structure, prototype and manufacturing preparation.
- Shown: Display architecture map for brand header, front window, product stack and dispensing slot.
- Shown: Exploded view separating the top cover, front window and refillable product tray.
- Shown: CMF direction across white, wood-grain and black counter finishes.
- Shown: Prototype notes for restock speed and shelf-stability validation.
Result notes
What changed through the project
These client-safe outputs show the kind of project progress you should expect.
- Result: Clarified a restockable, shelf-stable display direction before committing to tooling.
- Result: Reduced the risk of blocked logo visibility or slow staff restocking.
- Result: Gave the brand team three shelf-presence options to test with retail partners before tooling.
- Result: Designing the refill opening around the store workflow typically brings a full restock down to a single top-load pass for one staff member.
Repeatable checklist
What a similar team should prepare
The first review gets faster when you can share the few details that define your current stage.
- Prepare: Product and packaging dimensions.
- Prepare: Target shelf footprint and store restock process.
- Prepare: Reference displays and brand guidelines.
- Prepare: Prototype goal: appearance model, functional sample or production-intent sample.
